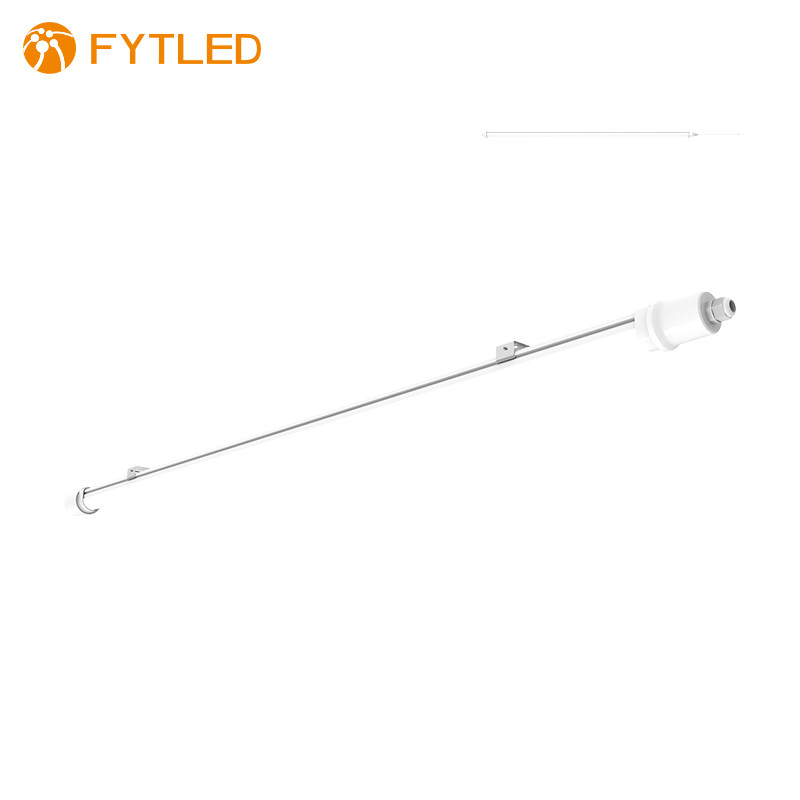

E-Slim tri-proof light 1200mm~1500mm 20W 30W 40W 5 years warranty SMD2835 CE ROHS
The E-Slim T54 Tri-Proof light is the optimal solution for areas with harsh environmental conditions.
Similar to T8 size but can be used in harsh places, such as gas stations,wet condition......
Key Features
-20W~40W
- up to 130lm/w
-Single or linkable use
-φ28
-IP67 or IP65 for both indoor and outdoor use
-5 years warranty
OPTIONS
-CRI90 available upon request
AREA OF APPLICATION
-Corridors/hallways
-Storage areas
-Stairways
-Parking lots
-Gas stations
-Car wash/auto body operations
-Other applications subject to harsh, wet, or otherwise challenging conditions
CERTIFICATIONS
European market: CE RoHS
INCLUDED MOUNTING ACCESSORY
(Surface mounting bracket is optional)
Product Specification
| MODEL No. | Specifications |
| Size (mm.) | Rated Power | LED Quantity | Color Temperature | Rated luminous efficacy (lm/w) | Luminous flux | CRI | Beam Angle | Driver Brand |
| T54-20W12 | 1198*38*38mm | 20W | 125PCS SMD2835 | 3000K/4000K
5000K/6000K | 130±10 | 2600±200lm | >80 | 120° | Tomcarline |
| T54-30W12 | 1198*38*38mm | 30W | 125PCS SMD2835 | 3000K/4000K
5000K/6000K | 130±10 | 3900±300lm | >80 | 120° | Tomcarline |
| T54-30W15 | 1498*38*38mm | 30W | 168PCS SMD2835 | 3000K/4000K
5000K/6000K | 130±10 | 3900±300lm | >80 | 120° | Tomcarline |
| T54-40W15 | 1498*38*38mm | 40W | 168PCS SMD2835 | 3000K/4000K
5000K/6000K | 130±10 | 5200±400lm | >80 | 120° | Tomcarline |
Electrical datas
| Type of current | AC 100~277V | Col or rendering i ndex Ra | >80 |
| Power factor | >0.9 | Standard d eviation o f col or matching | <5 |
| Start time ( 0.2s / 0 .5s / … ) | 0.1S | UGR | <27 |
| Warm-up ti me to 6 0 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 120° |
LEAD TIME
5 days for sample
3-5 weeks for bulk order
PACKING
20pcs per carton: 1 piece in each inner box, and 20 inner box in one carton.
FAQ:
1. Delivery Time:
Normal 15 days after order confirming. Some items maybe more faster
2. Payment Terms:
T/T 30% deposit after order confirmed, the balance after goods ready
3. OEM :
OEM Service is available.
4. Shipping Ways:
By Express: DHL, UPS, EMS, TNT, etc.
By Air: Please let us know the airport.
By Sea : Please let us know the seaport.
UPS, FEDEX, EMS etc
